Swimlane Diagram for a Process Review Slide
Searching "swimlane diagram" mostly surfaces drawing tools built for mapping a process on an open canvas: Lucidchart, Miro, Visio and the rest. That is the right tool while a process is still being argued out loud in a room. It is the wrong one once the process is settled and the job left is a single, board-ready exhibit for a process review or a steering committee pack. That second job is narrower than it looks: which of the real variants of a swimlane diagram to draw, how much formal notation the room actually needs, and how to make the handoffs, not just the boxes, the thing a reader's eye lands on first. Below: four real variants and when each earns its place, the construction sequence that keeps forty aligned shapes from turning into a mess, and the one-line route that renders the whole exhibit as an editable native PowerPoint slide.
Quick answer: what is a swimlane diagram?

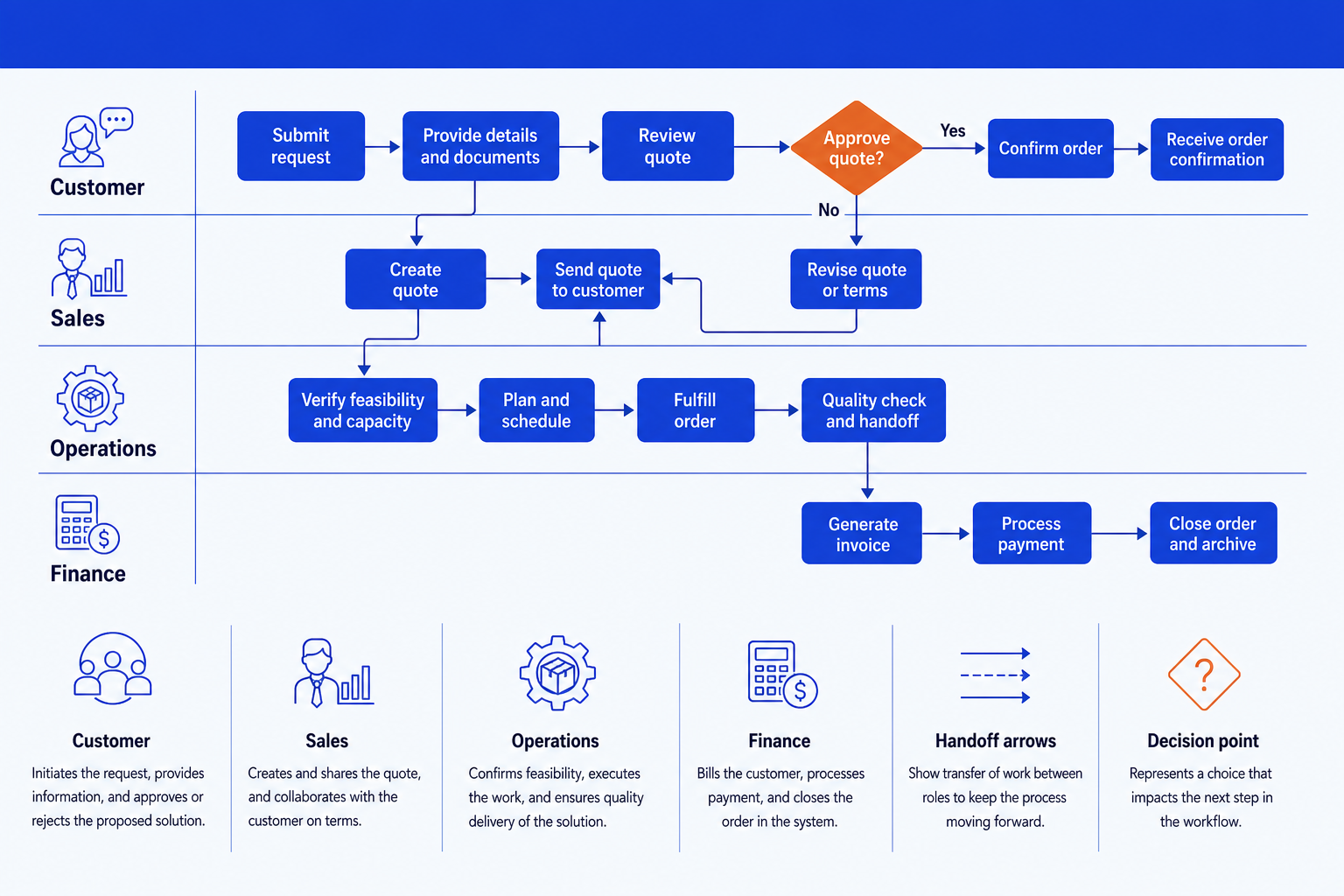

Build the plain version first: one horizontal lane per role, the process steps placed left to right in time order inside the lane that owns them, and a vertical arrow every time work crosses into another lane. Reach for a more complex variant only when a specific audience or a specific argument needs it.
A swimlane diagram is a flowchart that adds ownership to sequence. Horizontal or vertical bands, called lanes, are each assigned to one role or department, the process steps are drawn inside the lane that owns them, and arrows cross from lane to lane wherever work changes hands. It shows three things a plain flowchart cannot: who performs each step, in what order, and exactly where the process crosses a boundary between teams. Use it when the message is accountability and handoffs, such as an order-to-cash cycle or an incident response, not when the message is only sequence or timing.
When a swimlane diagram is the right exhibit
Not every process belongs on a lane chart. Reach for a swimlane diagram when all of the following are true, and reach for something else when they are not.
The process crosses two or more functions
A swimlane exists to show ownership changing hands. If one team runs the whole thing start to finish, a plain flowchart with no lanes is faster to build and reads exactly as well.
The argument is about where work stalls
Handoffs are usually where a process loses time. If the point is only sequence, not accountability, skip the lanes and draw a flowchart, or use a roadmap slide if the point is timing instead.
The audience has never seen BPMN
A steering committee reads five plain shapes without training. Save the full pool and lane notation for a systems or automation audience that already reads it daily.
The process is settled enough to draw once
If the steps are still being argued, map it live on a canvas tool first. A slide is a record of a decision, not a place to negotiate one.
The real question is who signs, not who hands off
When sign off is the point rather than the handoff itself, a RACI matrix or a stakeholder map answers it faster than any lane chart will.
What we ignored: lane colors, arrow styles, and the SmartArt-versus-shapes debate. None of it changes whether the slide answers the right question.
Key takeaways
- Default to the plain cross-functional flowchart. For a board or steering committee slide, the five-shape lane chart reads fastest and needs no training to follow. Reach for a more complex variant only when a specific audience or argument demands it.
- Save BPMN notation for a technical audience. Gateways, events and message flows are correct for a process-automation or systems team and confusing for a steering committee that has never seen the symbol set before.
- Turn the lanes vertical once steps outnumber roles. A wide flowchart with three lanes and eleven steps reads better as stacked columns on a portrait page than as a landscape slide fighting its own aspect ratio.
- Put a number on a handoff when the slide has to justify a fix. A relationship map that writes cycle time or error rate on the crossing arrow argues its case; a plain lane chart only describes it.
- Match the exhibit to the question, not to the process. If the real question is who signs off rather than who hands off, a RACI matrix or a stakeholder map answers it faster than any swimlane variant will.
The four real variants of a swimlane diagram
These four cover almost every board deck. The table scores each against the five rules above; the blocks that follow go deeper on when each one wins.
| Variant | What it shows | Best audience | Shows handoffs | Notation load | When it wins |
|---|---|---|---|---|---|
| Cross-functional flowchart | Steps left to right, grouped into role lanes | Steering committee, board pack | Yes, as vertical crossing arrows | Low: five shape types | The default for almost any process review slide |
| Vertical swimlane (deployment flowchart) | Steps top to bottom, grouped into role columns | A written report or a portrait page | Yes, as horizontal crossing arrows | Low | Steps outnumber roles, or the page is taller than it is wide |
| BPMN pool and lane diagram | Formal events, gateways and message flows inside pools | IT, process automation, systems architects | Yes, plus system-to-system message flows | High: a trained symbol set | The diagram feeds a workflow or automation tool, not only a meeting |
| Rummler-Brache relationship map | Lanes plus a performance measure on every handoff | Operations, Lean and Six Sigma teams | Yes, and quantified | Medium | The deck has to justify why a handoff is the bottleneck |
What is a cross-functional flowchart, and is it the same as a swimlane diagram?
Yes, same diagram, two names. "Cross-functional flowchart" describes what it does, crossing department lines, and "swimlane" describes how it looks, like the lane markers in a pool. The name traces to Geary Rummler's and Alan Brache's 1990 book, Improving Performance: How to Manage the White Space on the Organization Chart, which first called the lanes "swim lanes" and argued that most process failures happen not inside a department but in the white space between them, the boundary areas nobody formally owns.
Alan Ramias, a partner at Performance Design Lab and a successor to Rummler's own consulting practice, still frames it the same way: "It is in those unmanaged boundary areas where often misunderstandings occur, mistakes are made, delays come about... in short, bad things happen." That is the entire case for drawing the lanes in the first place. A flowchart with no lanes shows what happens. A swimlane shows who is accountable when it stops happening, which is the harder and more useful question for a board pack.
Build this version first, always. It needs no legend, no training and no notation guide, and a reader who has never seen a process diagram before can follow it in under ten seconds.
The trade-off: it is deliberately shallow. It shows that a handoff exists, not why it is slow, and it carries no formal semantics a workflow tool could read back in.
When should a swimlane diagram run vertically instead of horizontally?
Turn the lanes into columns, called a deployment flowchart, once the process has more steps than roles, or once the page is taller than it is wide. Four roles and eighteen steps make an ugly landscape slide: the lanes run thin, the steps sit cramped, and the eye has to travel the whole width of the slide to follow one thread. Stood up as columns, the same content reads top to bottom, which is also how most people read a page, a report appendix, or a printed handout.
The mechanics do not change, only the axis. Roles run left to right across the top as column headers, steps run top to bottom inside the column that owns them, and a handoff becomes a horizontal arrow crossing from one column into the next rather than a vertical one dropping into another row. Decision diamonds and the emphasis color work exactly as they do in the horizontal version.
Use it for a process appendix inside a written report, a portrait-orientation one-pager, or any process with meaningfully more steps than owners. Keep it horizontal for a sixteen-by-nine board slide with three to five roles, which is the far more common case.
The trade-off: a vertical swimlane projects worse. A room reading a screen scans left to right by habit, and a tall diagram forces either vertical scrolling or a font small enough to lose the back row.
What is a BPMN swimlane, and do you need the formal notation?
BPMN, Business Process Model and Notation, is the formal standard the swimlane concept was folded into. First published in 2004 and standardized by the Object Management Group in 2006, it is now also published as ISO 19510. In BPMN terms, a pool is the outer box for one participant, a company, a system, or a department acting as a single entity, and a lane is a subdivision inside a pool for a role or sub-team. The vocabulary is precise: a start event is a circle, a task is a rounded rectangle, a gateway is a diamond that governs a branch or a parallel split, and a message flow is a dashed arrow that specifically means information crossing between two separate pools, not just between two lanes in the same one.
That precision is the entire reason to use it, and the entire reason not to. A process-automation team can hand a correctly drawn BPMN diagram to a workflow engine and expect the logic to match. A steering committee cannot read one without a legend, and a board pack is not the place to teach gateway notation.
Use plain shapes and skip the standard for a board slide. Reach for real BPMN only when the diagram also has to be a specification, feeding a BPM suite, an automation build, or a systems team that already reads the notation daily.
The trade-off: BPMN buys precision at the cost of the exact accessibility a board exhibit exists to deliver.
What is a Rummler-Brache relationship map, and when does it beat a plain swimlane?
Rummler's and Brache's own preferred version was never the bare lane chart. Their "relationship map" adds a performance measure directly on the arrow at each handoff, a cycle time, an error rate, a cost, so the diagram argues its case instead of only describing the process. A plain swimlane says a handoff exists between Sales and Operations. A relationship map says that handoff averages nine days and drops twelve percent of orders, which is the sentence that gets a fix approved.
The measure matters because most organizations do not actually have one to hand. In BPTrends' 2016 State of Business Process Management survey of process practitioners, only 24 percent of organizations reported having a manager responsible for an entire value chain, and just 10 percent said all their managers were trained to think as process managers rather than functional managers. Ownership across a process, the exact thing a swimlane is supposed to make visible, is the exception rather than the rule in most companies, which is why naming it on the slide does real work.
The cost of leaving it implicit is not abstract either. PMI's 2013 Pulse of the Profession in-depth report on communications found that fifty-six percent of the money companies put at risk on a given project, seventy-five million dollars of every hundred and thirty-five million, is put at risk specifically by ineffective communications, and that ineffective communications is the primary contributor to project failure one in three times. A handoff is a communication event. A relationship map is the one variant that puts a price on getting it wrong.
The trade-off: it needs real operational data. Guess the numbers and you have built a more convincing-looking version of a fiction, which is worse than the plain chart it replaced.
Can Oria build the swimlane diagram slide for you?
Yes, for the plain and vertical variants, which cover most board decks. Oria is built for corporate documents and consulting presentations: board packs, steering committee decks, diligence exhibits, and dense frameworks held to an enforced corporate template. It reaches you two ways: a PowerPoint add-in that runs in the task pane on Windows, macOS and PowerPoint for the web, and a connector for Claude and ChatGPT over MCP, so the slide can be built from the chat you are already in without opening PowerPoint at all. Either way the output is native PowerPoint shapes on your master, so every lane, box and arrow stays editable afterward: move a step to a different owner, rename a lane, or reroute a handoff without rebuilding the grid.
Describe the process in one line and Oria renders the lanes, the steps, the handoff arrows and a decision diamond in your template.
One-line swimlane prompt for Oria
The trade-off: Oria is built for the corporate environment and loses on highly visual work. A founder's pitch deck, a launch or campaign deck, or a marketing one-pager wants visual impact more than defensible content, and a design-led tool such as Gamma, Canva, Pitch or Beautiful.ai will beat it there and look better doing it. It also will not draw the BPMN pool-and-lane version; formal notation is a job for a dedicated modeling tool such as Visio or Lucidchart, not a slide add-in.
How do you actually build a swimlane diagram slide?
There is no native swimlane object in PowerPoint or Google Slides, so the build is aligned shapes on a grid: lane bands, step boxes and connector arrows. Get the data settled before you open the deck; realigning forty shapes because the fourth lane was wrong is the afternoon this section exists to save you.
Get the roles and steps settled before you open PowerPoint. List every function that touches the process and, for each one, its steps in time order. Do this in a document or in Claude, not in the slide software; renaming a lane after the boxes are drawn is how alignment drifts.
Fix the lane count at three to five. One lane per genuine owner, ordered top to bottom by who acts first. Merge adjacent minor roles into one lane rather than adding a sixth; six or more lanes turns a board exhibit into a project map nobody reads in the room.
Lay the steps left to right on a shared grid. Equal lane heights, every box snapped to the same baseline, one column width per unit of time so position on the slide means something consistent.
Draw the handoffs as vertical arrows, and count them. The number of lane crossings should match the number of role changes on your own list; if it does not, a step is mislabeled or sitting in the wrong lane. This is the number that has to tie.
Add decision diamonds only where the path actually branches. Label both branches, such as approved or rejected, and route the arrows accordingly. Marking every check as a decision buries the one branch that matters.
Write the action title last. Replace the topic label with a full sentence naming the handoff or bottleneck the slide is actually about, using the crossing count from step four if you have it: which handoff gates the process.
Gotcha
Put every step in exactly one lane, never straddling two. A box that straddles a lane boundary is the single most common tell that a slide was built by copying an existing template rather than the actual process, because whoever filled it in did not know which team truly owned that step. The second tell is a swimlane with no crossings at all: if every step stays inside its lane, you have drawn an expensive flowchart, and the diagram is not telling the reader anything a plain list would not. The same discipline applies when raw workshop notes become slides, covered in the guide to turning meeting notes into editable slides.
Which tool should you use for a swimlane diagram?
It depends what has to happen with the diagram after you draw it.
| If you need | Use | Why |
|---|---|---|
| To map the process live, while the team is still arguing over it | Miro, Mural or Lucidchart | An infinite canvas and sticky notes beat a slide while the steps are still being negotiated, and these are the tools that actually hold the bare search term today. |
| A formal BPMN model that feeds a workflow or automation tool | Visio or a dedicated BPMN modeler | The notation has to be correct enough for software to read back, which is a modeling job, not a slide-design job. |
| The exhibit inside your firm template, as native editable shapes | Oria | Built for board packs and steering committee decks: lanes, steps and handoff arrows come out as real PowerPoint objects on your master. |
| A deck that has to look designed rather than corporate | Canva, Pitch or Beautiful.ai | Where the job is visual impact rather than a defensible process argument, a design-led tool will beat a corporate template and look better doing it. |
| Who signs off on the work, not who hands it off | A RACI matrix or a stakeholder map | A different question entirely: accountability for named deliverables rather than the flow of a process between teams. |
| A timeline of dates rather than a chain of handoffs | A roadmap or Gantt-style slide | Sequencing over months is a different message than ownership across teams, and wants a different exhibit. |
For the accountability version of this exhibit, one owner per named deliverable rather than one lane per role, see how to build a RACI matrix and stakeholder map slide. For sequencing over months rather than ownership across teams, see the Gantt-alternative roadmap slide. If the deliverable is a reporting structure rather than a process, see how to build an org chart slide.
Common swimlane diagram mistakes to avoid
None of this is really about shapes. The Standish Group's original CHAOS research, a survey of 365 companies and 8,380 applications, asked IT executives what separates a project that succeeds from one that does not, and "ownership" showed up as a distinct, named factor in its own right, separate from executive support, planning or a clear statement of requirements. A swimlane diagram is a slide-sized way of forcing that same answer into the open: not just that the work gets done, but who is on the hook for each piece of it. Get the ownership right and the shapes mostly take care of themselves. For the wider habits that make an AI-built slide look board-ready rather than generic, see the consultant's guide to Claude, or the best AI for PowerPoint for the tools that carry a full deck under deadline.
Frequently asked questions
What is a swimlane diagram used for?
A swimlane diagram shows a process that crosses more than one role or department, with each one given its own lane so a reader can see who does what, in what order, and exactly where work hands off between teams. Operations, transformation and process-improvement teams use it to make accountability visible on a single slide, most often for a process review, an onboarding journey, an order-to-cash cycle, or an incident response, wherever the point is ownership and handoffs rather than sequence alone.
What is the difference between a swimlane diagram and a flowchart?
A flowchart shows the sequence of steps without saying who owns each one. A swimlane diagram adds a second dimension: it groups the same steps into lanes by role, so every box sits inside the function responsible for it, and every arrow crossing a lane boundary marks a handoff. Use a plain flowchart when only the sequence matters; use a swimlane when accountability and the handoffs between teams are the actual message of the slide.
How many lanes should a swimlane diagram have?
Three to five lanes is the readable range for a board or steering committee slide, one lane per genuine owner, ordered top to bottom by who acts first in the process. Past five lanes, the exhibit starts to read like a project map rather than a board slide. If more roles are genuinely involved, merge adjacent minor ones into a single lane, or split the process across two slides instead of cramming every function in.
What is a BPMN swimlane?
BPMN, short for Business Process Model and Notation, is the formal standard the Object Management Group adopted in 2006, later published as ISO 19510. In BPMN, a pool represents one participant and a lane subdivides it by role, drawn with a precise vocabulary of events, tasks, gateways and message flows. It suits a systems or automation audience that needs the diagram to double as a specification, not a board pack, which reads faster in plain shapes.
Can PowerPoint make a swimlane diagram?
Yes, but PowerPoint has no built-in swimlane object, so the diagram is built from aligned shapes: rectangles for the lane bands, boxes for the steps, and connector arrows for the flow and the handoffs. Some people import a finished diagram from Visio instead, which works but drops in notation and object names a PowerPoint-only audience will not recognize. An add-in such as Oria, or the manual grid method in this guide, both stay inside native PowerPoint shapes.
How do you show handoffs on a swimlane diagram?
Draw a vertical arrow from the last step in one lane to the first step it triggers in another lane; each one marks work changing owner. Keep the flow inside a single lane horizontal, so the crossings stand out visually rather than blending into the rest of the diagram. Counting the crossings against your own list of role changes is also the fastest way to catch a step that landed in the wrong lane before the slide ships.
What is the fastest way to build a swimlane diagram slide?
Describe the process in one line and let Oria render it: the lanes by role, the steps in each lane in order, and the handoffs that cross between them. Oria builds a fully editable native PowerPoint swimlane in your own template, lane bands, step boxes, arrows and decision diamond included, which skips the manual alignment of dozens of shapes entirely.
